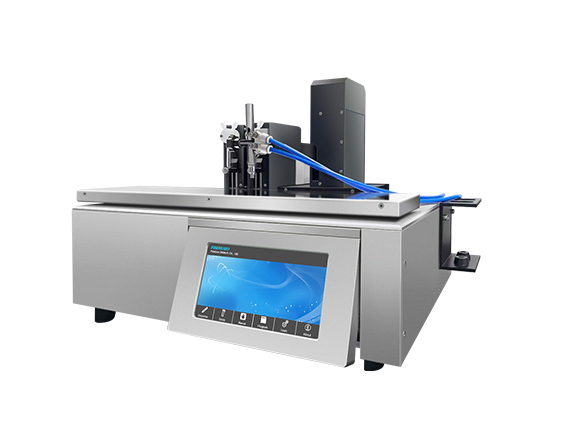

Lateral Flow Dispenser & Test Spray Machine

XYZ3000 dispenser instrument adopts a high-precision stepping pump to carry out liquid transportation, which can realize the control of non-pulse liquid flow and ensure the formation of uniform and single solution lines on the membrane. The instrument can not only carry out solution labeling to meet the requirements of the package of antibody solution of NC membrane in gold-labeled strip, but also carry out solution spraying to meet the requirements of the package of gold spraying solution. X

Diagnostic Test Kit
Antibody & Antigen

Specification of Lateral Flow Dispenser & Test Spray Machine

Product modelXYZ3000
Input power~220V±22V  50Hz~60Hz 2A
Overall dimension568mm×379mm×348mm
Platform(Working) Area476*112(350*85)mm
Dispensing efficiency250 sheet/hour
Spraying efficiency800 strip/hour
Platform moving speed50~150mm/s
Minimum dispensing space3mm
Dispensing solution concentration0.20~9.99 ul/cm
Spraying solution concentration1.00~9.99 ul/cm
Minimum fill and drain volume1ul
Reagent residual volumeApproach to 0
Dispensing tip position precision±0.1mm
Maximum storage program10
Syringe capacity (Standard configuration)can be customizable 500ul
The number of standard pump3, can be up to 5
