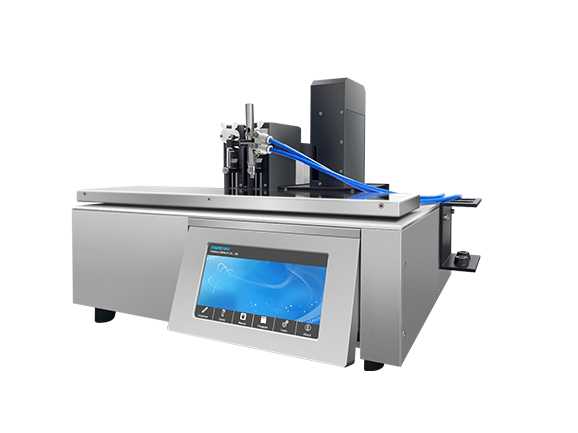

3D Platform Gold Sprayer

PJY200 Sprayer is used to spray colloidal gold and other particles evenly on glass fiber materials through solution in the production process. High precision stepping pump and independent research and development of precision spraying pen ensure line uniformity, which make it one of the necessary production equipment for small and medium-sized enterprises.





Diagnostic Test Kit
Antibody & Antigen
News

Specification of 3D Platform Gold Sprayer

Product modelPJY200
Input power~220V±22V  50Hz~60Hz 2A
Power200W
Overall dimension

568mm×378mm×349mm

Platform(Working) Area476*112(350*85)mm
Spraying efficiency

400 strip/hour

Platform moving speed

50-125mm/s

Spraying solution concentration1.00~9.99 ul/cm
Minimum fill and drain volume1ul
Reagent residual volumeApproach to 0
Maximum storage program10
Syringe capacity (Standard configuration),

500ul/1000ul

Number of standard pump

1
